Model TCB-08

Product Information

  • Compressor Type: Integrally geared single stage compressor
  • Control System: I – Inlet Guide Vanes, O – Variable Diffuser Vanes, CC – Combined Control (IGV + VDV)
  • Medium: Air
  • Frame family: TCB08
  • Gear Box: Vertical Split, Single helical gears, Ball bearings, Forced lubrication

Material specification

  • Volute Casing: Cast iron EN GJL-250
  • Casing Impeller: Cast iron EN GJL-250
  • Vanes: Aluminium alloy (2618A) or stainless steel
  • Base Frame: Deep groove ball bearings
  • Fast Shaft: High tensile 18CrNiMo7
  • Drive Shaft: High tensile 34CrNiMo6
  • Bearings: High precision ceramic angular ball bearings
  • Coupling: Flexible compact type
  • GearWheels: High tensile 18CrNiMo7

Assistants

  • Inlet Filter/Silencer: 95% filtration as per Filter Class, EU G4 & baffle type silencer
  • IGV/VDV Actuation: Electric linear actuator
  • Expansion Joint: DN300/150 steel flanges with Stainless Steel or EPDM Bellows
  • Cone Diffuser: From DN150 to Oulet DN200/400
  • Blow-off-valve: DN 100, Electric actuated
  • Check valve: DN250/400, dual flap wafer type
  • Oil for Gearbox: Approx 45 liters (ISO VG46)
  • Lube oil cooling: Air
  • Cooling Fan: IP55 50/60Hz

Compressor

  • Drive: Electrical-motor, 2 Pole
  • Motor Voltage: Low-medium – high voltage
  • Input frequency: 50/60 Hz
  • Motor speed: 3000 rpm or 3600 rpm
  • Protection class: IP55

Standard Quality

  • Test Procedure:  ISO 5389 & ASME PTC10
  • Mechanical Test: Internal Standard
  • Quality: ISO 9001

For special requirements of low sound level we apply inlet, outlet and blow-off silencers and make then special sound absorbing enclosure.

Main parts

  1. Inlet Filter/Silencer
  2. Compressor
  3. Compensator
  4. Cone Diffuser/Silencer

       5. Base Frame
       6. LCP Panel
       7. Air Cooled (Watercooled in option)
       8. Compressor Drive

Performance data

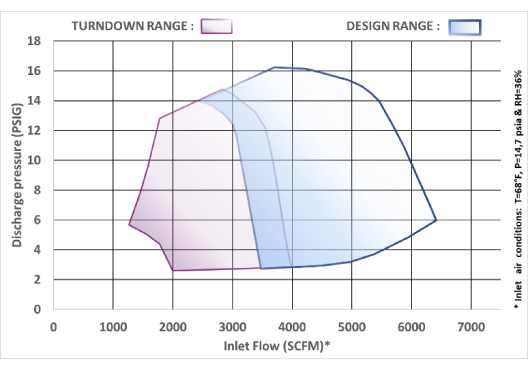

  • Flow Regulation: See Performance chart
  • Flow Range: 100% – 40% of rated flow with Combined control
  • Pressure Range: 0.4 to 1.0 bar (g)
  • Power Range: Up to 250 kW
  • Discharge Velocity: Below 20m/s after Cone
  • Vibration Level: Max. 2.8mm/s per ISO 20816
  • Noise Level: 90 db(A) Without enclosure, 85 db(A) With enclosure, 75 db(A) With high performance standard enclosure

Panels

  • Human Interface: Siemens KTP700 Basic 7”
  • Option-1: Siemens KTP1200 Basic 12”
  • Option-2: Allen Bradley Panel View Plus 7”
  • PLC: Siemens ET200 SP CPU
  • Option-1: Allen Bradley Compac Logixs
  • Instrumentation: Air Pressure transmitter 4-20mA, Air Temperature transmitter 4-20mA, Bearing Temperature RTDs,Oil Temperature transmitter and alarm Switch, Oil Pressure transmitter and alarm Switch, Oil level sight glass, Vibration Transmitter 4-20mA, Surge Switch.
